Resistance Temperature Sensor Set (matched pair for heat meter) KTSP-101DS

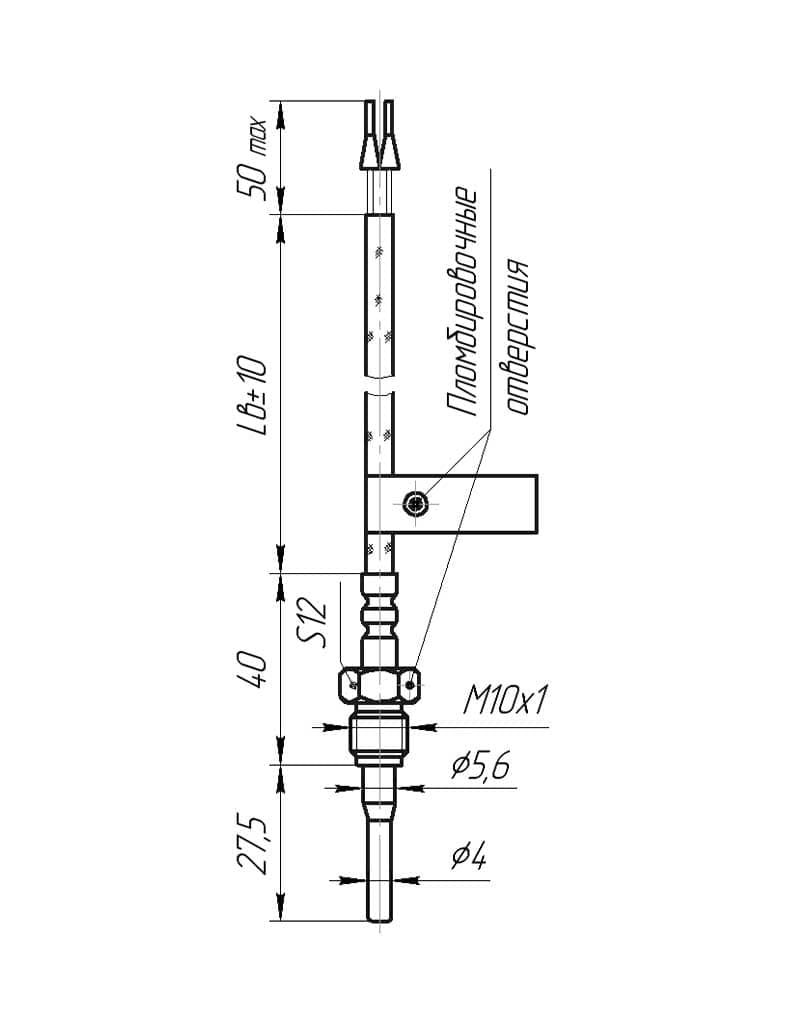

KTSP – 101DL Pt 100 A. 1. 2 D6 L60 - 1000 G1/2 S24 KTSP 101 Pt100 A 1 2 D6 L60 1000 G1/2 S24 Set of platinum resistance temperature sensors Modifications of KTSP: 101DS, 002DL, 101DL, 001PL, 102PL, 001, 002, 003, 011, 012, 101, 102 TCR type of RTD: Pt 100, Pt 500, Pt 1000 Temperature conversion accuracy class: A, B Difference temperature conversion accuracy class: 1, 2 Wiring diagram of RTD leads: 2 - two-wire; 4 - four-wire Diameter of mounting part, D, mm according to dimension drawing Length of mounting part, L, mm according to dimension drawing Length of leads, Lv, mm according to dimension drawing Thread type of fitting: according to dimension drawing Size of fitting nut, mm: according to dimension drawing Length of leads indicated only for modifications: 101DS, 101DL, 102PL, 101, 102. Sizes of fitting and nut indicated only for modifications: 002, 003, 012, 101, 101 DS, 002 DL, 101 DL
