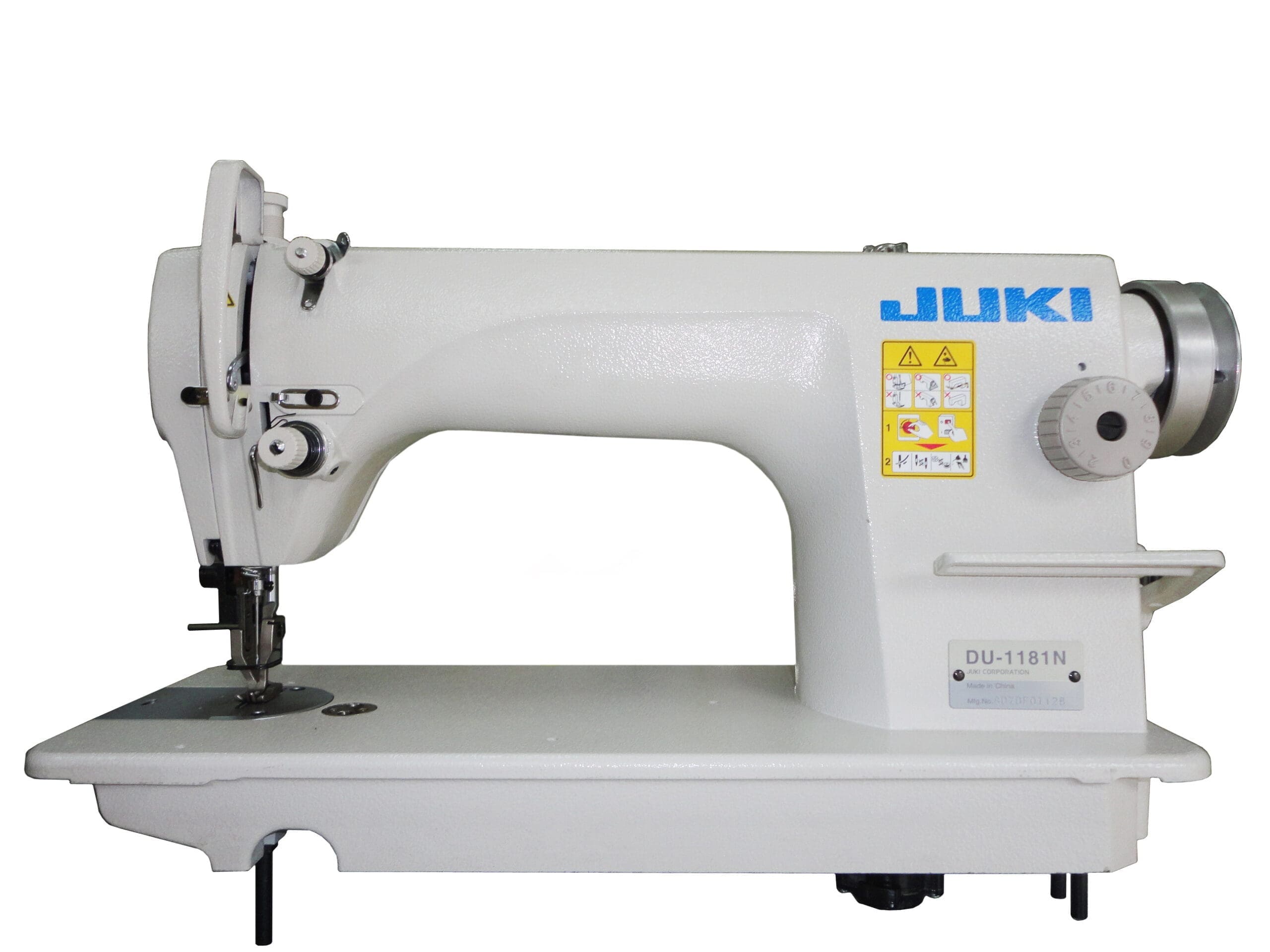

DU-1181-N 1-needle, Top and Bottom-feed, Lockstitch Machine with Double-capacity Hook

1-needle, Top and Bottom-feed, Lockstitch Machine with Double-capacity Hook With its powerful top and bottom feed mechanism, the machine smoothly feeds a difficult-to-feed material or a multi-layered part of material without pitch errors, achieving consistent seam quality. Product features Higher lift of the presser foot The lift of the presser foot, by the knee lifter, is as high as 15 mm so as to support processes which require a higher lift of the presser foot, such as piping and tape-attaching. The maximum stitch length is 9 mm With its stitch length being as large as 9 mm, the machine is applicable to a broader range of sewing processes. The double-capacity hook is provided as standard The machine comes with a horizontal-axis double-capacity hook, not only to decrease the frequency of bobbin thread changing, but also to enable sewing work with increased efficiency. Specification Model name DU-1181N Max. sewing speed 2,000sti/min* Max. stitch length 9mm (forward/backward) Needle bar stroke 36.5mm Lift of the presser foot By hand: 5.5mm, By knee: 15mm Thread take-up Link type Alternating vertical movement 2~5mm Hook Horizontal-axis full-rotary double-capacity hook Needle (at the time of delivery) DP×17 (#21) #14~#23 *The DB×1 needle can also be used. Thread #40~#8 Pitch changing method By dial Knee-lifter mechanism Built on the machine head Lubrication Automatic Lubricating oil JUKI MACHINE OIL No.7 (equivalent to ISO VG7) Distance from needle to machine arm 261mm Bed size 477mm×178mm Weight of the machine head 31kg
